# RhinoMCP
**Control Rhino 3D and Grasshopper with AI, in plain language.**
RhinoMCP connects Rhino to AI agents through the [Model Context Protocol](https://modelcontextprotocol.io),
so assistants like Claude and Cursor can model geometry, read your document, and build
Grasshopper definitions for you, just by chatting.
[](https://pypi.org/project/rhinomcp/)
[](https://www.rhino3d.com/)
[](https://www.python.org/)
[](https://modelcontextprotocol.io/)
[](LICENSE)
[Quick start](#quick-start) · [What it can do](#what-it-can-do) · [Usage](#usage) · [Examples](#example-prompts) · [Tool reference](#tool-reference)
**English** · [简体中文](README.zh-CN.md)
</div>
---
## Highlights
For development of the autonomous improvement experiments, start with the
[continuation guide](experiments/CONTINUE.md).
- Describe what you want and the assistant builds it in Rhino.
- It reads your document and can capture the viewport, so it works from what is actually on screen.
- It scripts Grasshopper for you: finding components, wiring them, setting sliders, and solving.
- A single plugin and a single config entry cover both Rhino and Grasshopper.
- When you need more control, it can run native Rhino commands, RhinoScript-Python, or RhinoCommon C#.
> [!NOTE]
> RhinoMCP targets **Rhino 8** on Windows and macOS.
## Demos
<table>
<tr>
<td width="50%" align="center">

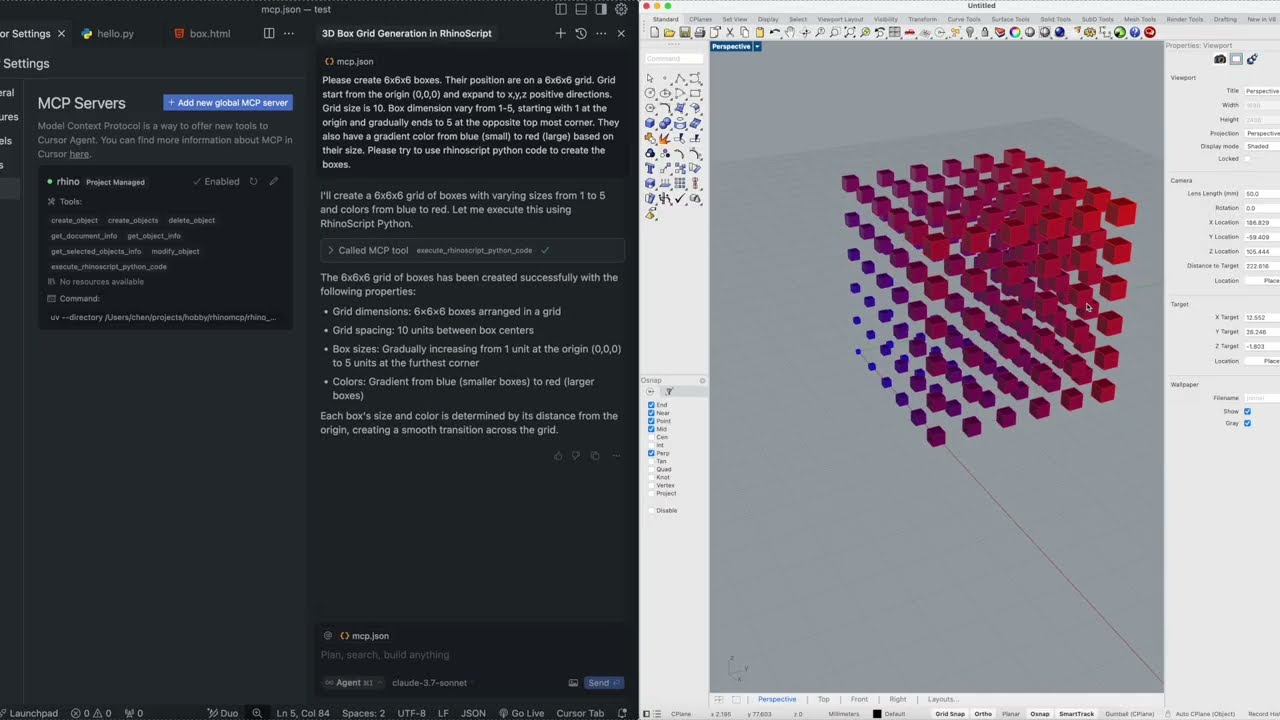

[](https://youtu.be/pi6dbqUuhI4)
**Two-way interaction:** the AI both creates and reads geometry.
</td>
<td width="50%" align="center">

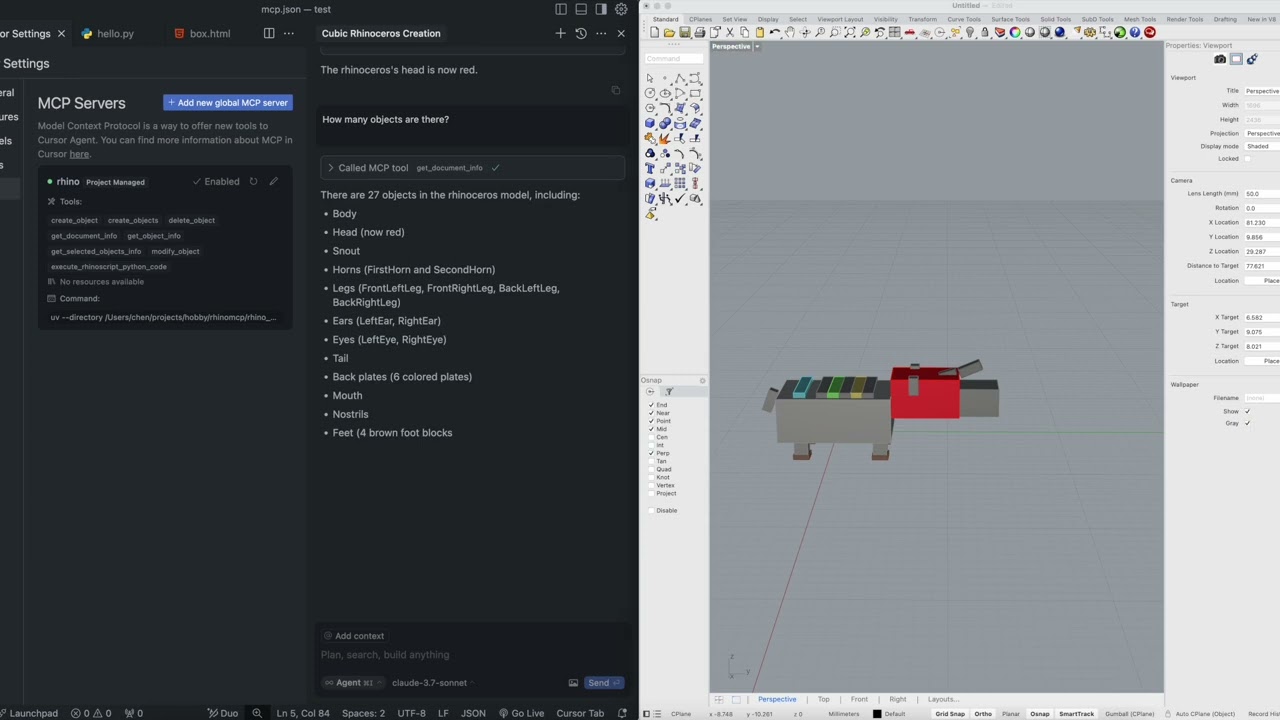

[](https://youtu.be/NFOF_Pjp3qY)
**Custom scripts:** the AI writes and runs scripts inside Rhino.
</td>
</tr>
</table>
Prefer a walkthrough? Nate made a showcase and install [tutorial on YouTube](https://www.youtube.com/watch?v=z2IBP81ABRM).
## What it can do
### <img width="30" height="30" src="https://img.icons8.com/color/48/rhinoceros-6.png" alt="rhinoceros-6"/> Rhino
| Area | What the AI can do |
| ------------------- | -------------------------------------------------------------------------------------------------------------------------------------- |
| Create geometry | Points, lines, polylines, circles, arcs, ellipses, curves, boxes, spheres, cones, cylinders, and surfaces, one at a time or in batches |
| Transform & edit | Move, rotate, scale, recolor, rename, and delete objects |
| Advanced modeling | Loft, extrude, sweep, offset, pipe; boolean union, difference, and intersection |
| Curve operations | Project, intersect, and split curves |
| Layers & attributes | Create, delete, and switch layers; read and write object attributes |
| Inspect & select | Document summaries, object info, and filtered selection (by name, color, or category, with AND / OR logic) |
| See the model | Capture the viewport so the AI gets visual feedback |
| Analyze | Measure length, area, volume, bounding boxes, and more |
| Go deeper | Run any Rhino command, execute RhinoScript-Python, or run RhinoCommon C#, with built-in RhinoScript docs lookup |
### <img width="30" height="30" src="https://img.icons8.com/officel/80/grasshopper.png" alt="grasshopper"/> Grasshopper
| Area | What the AI can do |
| ----------------- | ----------------------------------------------------------------------------------------------------- |
| Find components | Search the installed component library and inspect a component's inputs and outputs before placing it |
| Build canvases | Add, position, lay out, update, and delete components |
| Wire it up | Connect and disconnect parameters between components |
| Set & read values | Drive sliders, toggles, panels, and value lists; read structured data back out of outputs |
| Solve | Run the solution and surface runtime warnings and errors |
| Build in one shot | Construct and wire a whole graph, or mutate an existing one, in a single batched operation |
## Quick start
Three steps: install the Rhino plugin, connect your AI client, then start the bridge in Rhino.
### 1. Install the Rhino plugin
In Rhino, open **Tools → Package Manager**, search for **`rhinomcp`**, and click **Install**. Restart Rhino.
### 2. Connect your AI client
#### Option A: ask your AI assistant to install it (recommended)
If you use an agentic assistant (Codex, Claude Code, Cursor, Cline, and the like), paste this prompt:
```
Please install https://github.com/jingcheng-chen/rhinomcp as a local MCP server named `rhino`.
```
#### Option B: Install the mcp server or manually edit the config yourself
**Codex**, in one command:
```bash
codex mcp add rhino --env RHINO_MCP_HOST=127.0.0.1 -- uvx rhinomcp@latest
```
**Claude Code**, in one command:
```bash
claude mcp add rhino -- uvx rhinomcp@latest
```
**ChatGPT:** use Codex for the local setup above. ChatGPT apps/MCP connectors currently connect
to remote MCP servers, not local stdio commands like `uvx rhinomcp`. If you want to build a
ChatGPT app around RhinoMCP, use ChatGPT developer mode with a remote or tunneled MCP endpoint.
You can also manually edit the config yourself:
```json
{
"mcpServers": {
"rhino": {
"command": "uvx",
"args": ["rhinomcp@latest"],
"env": {
"RHINO_MCP_HOST": "127.0.0.1"
}
}
}
}
```
> [!IMPORTANT]
> The launcher `uvx` comes from [**uv**](https://docs.astral.sh/uv/). If you don't have it yet:
> macOS `brew install uv` · Windows `powershell -c "irm https://astral.sh/uv/install.ps1 | iex"`
>
> Run **only one** RhinoMCP server at a time (Codex, Claude, Cursor, etc. — not several at once).
<details>
<summary>Auto-restart the server with your AI client (optional)</summary>
To clean up a stale `rhinomcp` process each time your client launches:
**macOS / Linux**
```json
{
"mcpServers": {
"rhino": {
"command": "sh",
"args": ["-c", "killall rhinomcp 2>/dev/null; uvx rhinomcp@latest"]
}
}
}
```
**Windows**
```json
{
"mcpServers": {
"rhino": {
"command": "cmd",
"args": ["/c", "taskkill /F /IM rhinomcp.exe 2>nul & uvx rhinomcp@latest"]
}
}
}
```
</details>
### 3. Start the Rhino bridge
With Rhino open, type **`mcpstart`** in the command line. This starts the TCP bridge the server
connects to (`mcpstop` ends it). Run it once per Rhino session.
### Staying up to date
RhinoMCP has three parts that update separately:
- **Python server.** `uvx rhinomcp@latest` asks PyPI for the newest release every time your
client starts the server; plain `uvx rhinomcp` keeps the first version it downloaded. If you
work offline, install it once with `uv tool install rhinomcp` and run `uv tool upgrade rhinomcp`
when convenient.
- **Rhino plugin.** Installed through the Package Manager, Rhino checks for updates at startup and
installs them when "Automatically update packages when Rhino starts" is enabled; the new version
loads on the next restart. A plugin installed by dragging a `.rhp` into Rhino is not updated.
- **AI client.** It reads the tool list when it launches the server, so restart the client (or
reconnect the server) after an update.
The server reads the plugin's version when it connects and warns in its log when the two differ.
A tool that needs a newer plugin fails with an update instruction instead of silently doing
something else, and `describe_capabilities` reports both versions.
## Usage
With the bridge running and your client connected, you'll see the RhinoMCP tools. From there, just
chat: ask the assistant to model something, inspect your scene, or build a Grasshopper graph.
<img src="docs/assets/rhino_plugin_instruction.jpg" alt="mcpstart in the Rhino command line"></td>
<img src="docs/assets/claude_example.jpg" alt="RhinoMCP tools in Claude"></td>
For Grasshopper, you only need Rhino open with `mcpstart` running. The assistant can open or create
the Grasshopper document itself, then build the definition. For example: _"create a point attractor
pattern with cylinders that have different heights."_
## Example prompts
> Create 6×6×6 boxes on a 10-unit grid from the origin, sizes ramping from 1 to 5,
> with a blue-to-red gradient color based on size. Use RhinoScript Python.
> Make a Rhinoceros animal out of cubic blocks in cartoon colors. Then change its head to red,
> and rotate the selected object 90° around the Z axis.
> Create a point attractor pattern in Grasshopper: a grid of cylinders whose heights change with
> their distance from an attractor point, with a slider to move the point.
## Tool reference
<details>
<summary><b>Rhino tools</b></summary>
| Tool | Purpose |
| ------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------ |
| `create_object` / `create_objects` | Create one or many objects |
| `modify_object` / `modify_objects` | Transform or edit one or many objects |
| `delete_object` | Delete an object |
| `boolean_union` / `boolean_difference` / `boolean_intersection` | Boolean operations |
| `loft` / `extrude_curve` / `sweep1` / `offset_curve` / `pipe` | Advanced surface and solid modeling |
| `project_curve` / `intersect_curves` / `split_curve` | Curve operations |
| `analyze_objects` | Measure length, area, volume, bounding boxes, and more |
| `select_objects` | Select by filters (name, color, category; AND / OR) |
| `get_objects` / `get_object_info` / `get_selected_objects_info` | Query objects |
| `get_object_attributes` / `update_object_attributes` | Read and write object attributes |
| `create_layer` / `delete_layer` / `get_or_set_current_layer` | Layer management |
| `get_document_summary` | Overview of the current document |
| `capture_viewport` | Screenshot the viewport for visual feedback |
| `run_command` | Run any native Rhino command |
| `execute_rhinoscript_python_code` | Execute RhinoScript-Python |
| `execute_rhinocommon_csharp_code` | Execute RhinoCommon C# |
| `search_rhinoscript_functions` / `get_rhinoscript_docs` / `list_rhinoscript_modules` / `get_module_functions` | RhinoScript API docs lookup |
| `get_commands` | List available commands |
| `undo` / `redo` | Undo and redo |
</details>
<details>
<summary><b>Grasshopper tools</b></summary>
| Tool | Purpose |
| --------------------------------------------------------------------- | ------------------------------------------------- |
| `gh_create_document` / `gh_get_document_info` / `gh_get_canvas_state` | Document and canvas inspection |
| `gh_search_components` / `gh_batch_search_components` | Search the component library |
| `gh_list_component_categories` / `gh_get_available_components` | Browse installed components |
| `gh_get_component_type_info` / `gh_get_component_info` | Inspect a component type or instance |
| `gh_list_components` | List components on the canvas |
| `gh_add_component` / `gh_update_component` / `gh_delete_component` | Add, update, or delete components |
| `gh_layout_components` | Auto-lay-out the canvas |
| `gh_clear_canvas` | Clear the canvas |
| `gh_connect_components` / `gh_disconnect_components` | Wire or unwire parameters |
| `gh_set_parameter_value` / `gh_get_parameter_value` | Drive inputs, read outputs |
| `gh_run_solution` / `gh_expire_solution` | Solve or expire the solution |
| `gh_build_graph` / `gh_mutate_graph` | Build or mutate a whole graph in one batched call |
| `gh_get_graph` / `gh_clear_graph` | Inspect or clear objects by graph id |
</details>
## How it works
```
AI client ──MCP (stdio)──► rhinomcp (Python) ──TCP 127.0.0.1:1999──► Rhino plugin ──► Rhino + Grasshopper
```
1. `server/`: a Python [MCP](https://modelcontextprotocol.io) server (official Python SDK 2.x) that exposes each tool and forwards it to Rhino.
2. `plugin/`: a RhinoCommon C# plugin that runs a TCP listener inside Rhino and executes commands on the main thread. Start and stop it with the `mcpstart` / `mcpstop` Rhino commands.
3. `contracts/`: JSON Schema definitions that keep the wire protocol between the two tiers in sync.
`IMPLEMENTATION.md` has a deeper tour of the code.
## Security
The Python server and the Rhino plugin talk over an unauthenticated TCP loopback link
(`127.0.0.1:1999`). Tools such as `run_command`, `execute_rhinoscript_python_code`, and
`execute_rhinocommon_csharp_code` give the model an open execution surface inside Rhino. This is
fine for local agent use. Do not expose it beyond the loopback interface without adding
authentication.
<details>
<summary>Operator switches (environment variables)</summary>
| Variable | Default | Effect |
| ------------------------------ | ----------- | ----------------------------------------------------------------------------- |
| `RHINO_MCP_HOST` | `127.0.0.1` | Connect target. Refuses non-loopback hosts unless `RHINO_MCP_ALLOW_REMOTE=1`. |
| `RHINO_MCP_PORT` | `1999` | TCP port. |
| `RHINO_MCP_ENABLE_RUN_COMMAND` | `1` | Set `0` to disable the `run_command` tool. |
| `RHINO_MCP_ENABLE_RHINOSCRIPT` | `1` | Set `0` to disable RhinoScript-Python execution. |
| `RHINO_MCP_ENABLE_CSHARP` | `1` | Set `0` to disable RhinoCommon C# execution. |
| `RHINO_MCP_VALIDATE` | `warn` | Pre-flight schema validation: `off` / `warn` / `strict`. |
| `RHINO_MCP_TIMEOUT` | `15.0` | Socket timeout in seconds. |
| `RHINO_MCP_DEBUG` | `0` | Verbose logging. |
</details>
## For developers
<details>
<summary>Build, test, and publish</summary>
**Python server** (run from `server/`)
```bash
uv venv && uv pip install -e ".[dev]" # set up
uv run pytest # run tests (no Rhino needed; uses a mock server)
uv run ruff check src/rhinomcp # lint
uv run python ../contracts/test_schemas.py # validate JSON schemas
uv build && uv publish # publish to PyPI
```
**C# plugin**
```bash
dotnet restore plugin/rhinomcp.sln
dotnet build plugin/rhinomcp.sln --configuration Release
```
To publish the plugin: build in Release, copy `manifest.yml` into `bin/Release`, then run
`yak build` and `yak push rhinomcp_xxxx.yak`.
</details>
## Contributing
Contributions are welcome. Feel free to open an issue or submit a pull request.
## Disclaimer
This is a third-party integration and is not made by McNeel. Built by
[Jingcheng Chen](https://github.com/jingcheng-chen).
## Star history
[](https://www.star-history.com/#jingcheng-chen/rhinomcp&Date)
### Modeling guidance distributed with the server
The Python package includes reusable guidance for transforms, planar regions,
organization, verification and recovery. Use `get_modeling_guidance("overview")`,
the `asset_general_strategy` MCP prompt, or the `rhinomcp://guidance/{topic}` resource.
Essential tool semantics stay in tool descriptions. No local experiment folder or
separate skill is needed. See [packaged guidance](server/README.md#bundled-modeling-guidance)
for available topics and release details.
